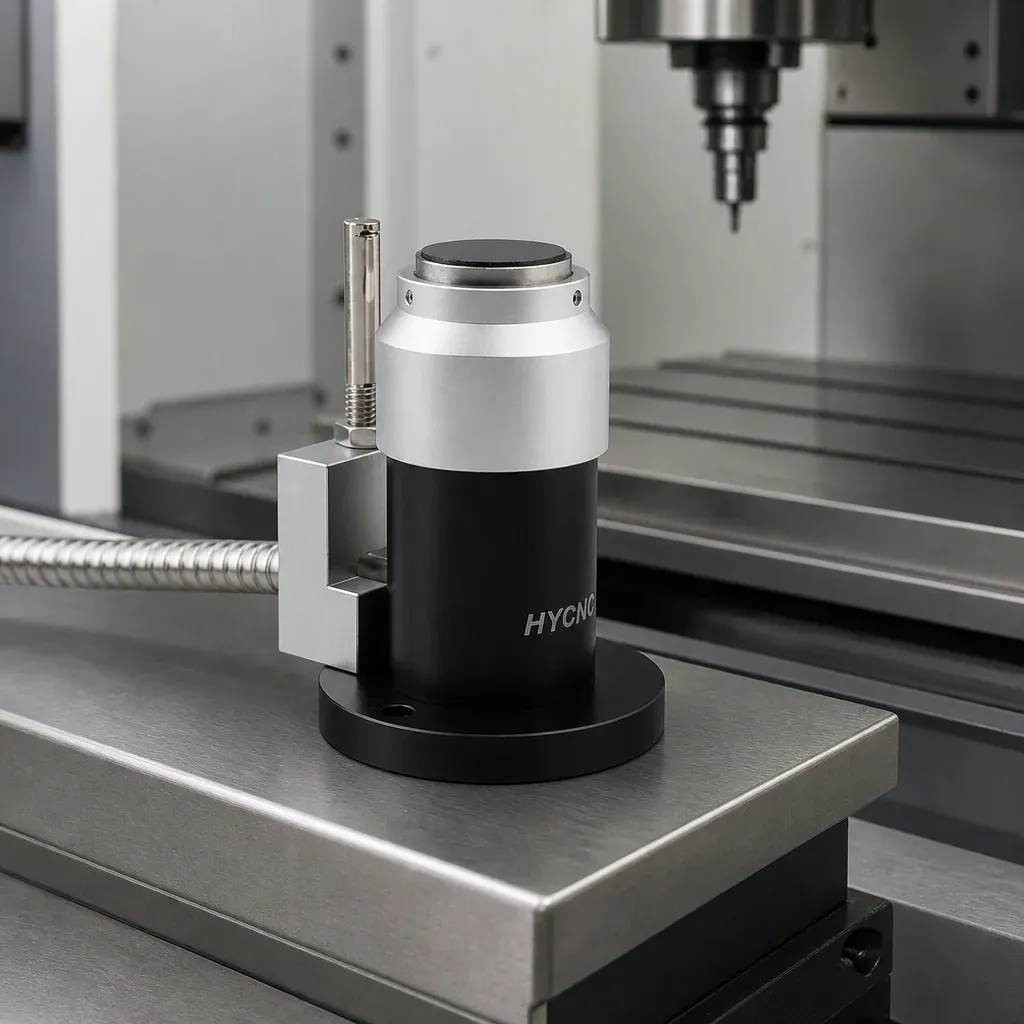

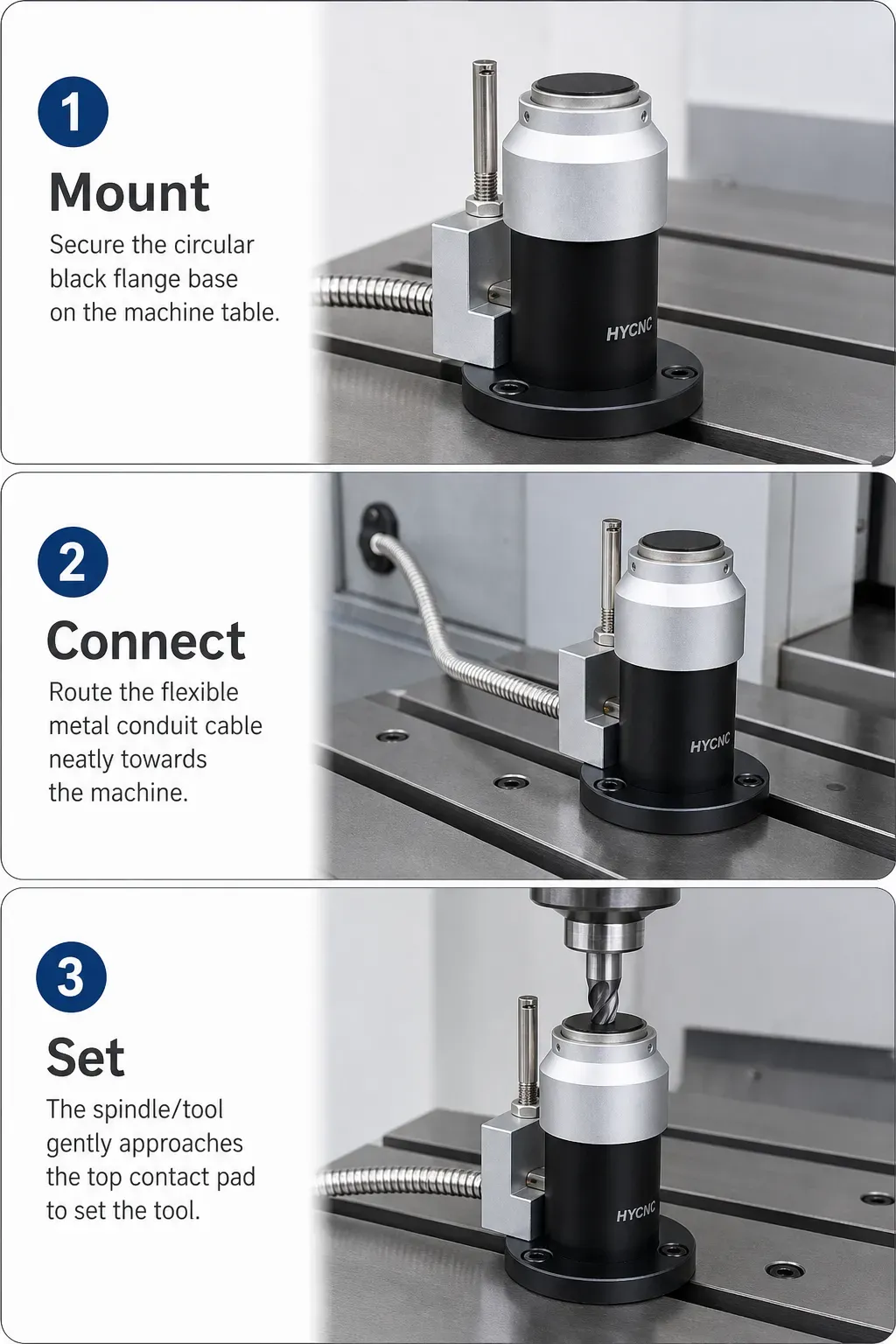

High-Precision CNC Tool Setter & Z-Axis Calibration

Wiring is straightforward: two wires serve as the primary tool touch signal (Normally Closed contact loop to Probe/GND inputs), and the remaining two wires form the over-travel protection switch loop (connected in series with your E-stop circuit or limit input). We provide full UK wiring schematics for Mach3, GRBL, and LinuxCNC with every order.

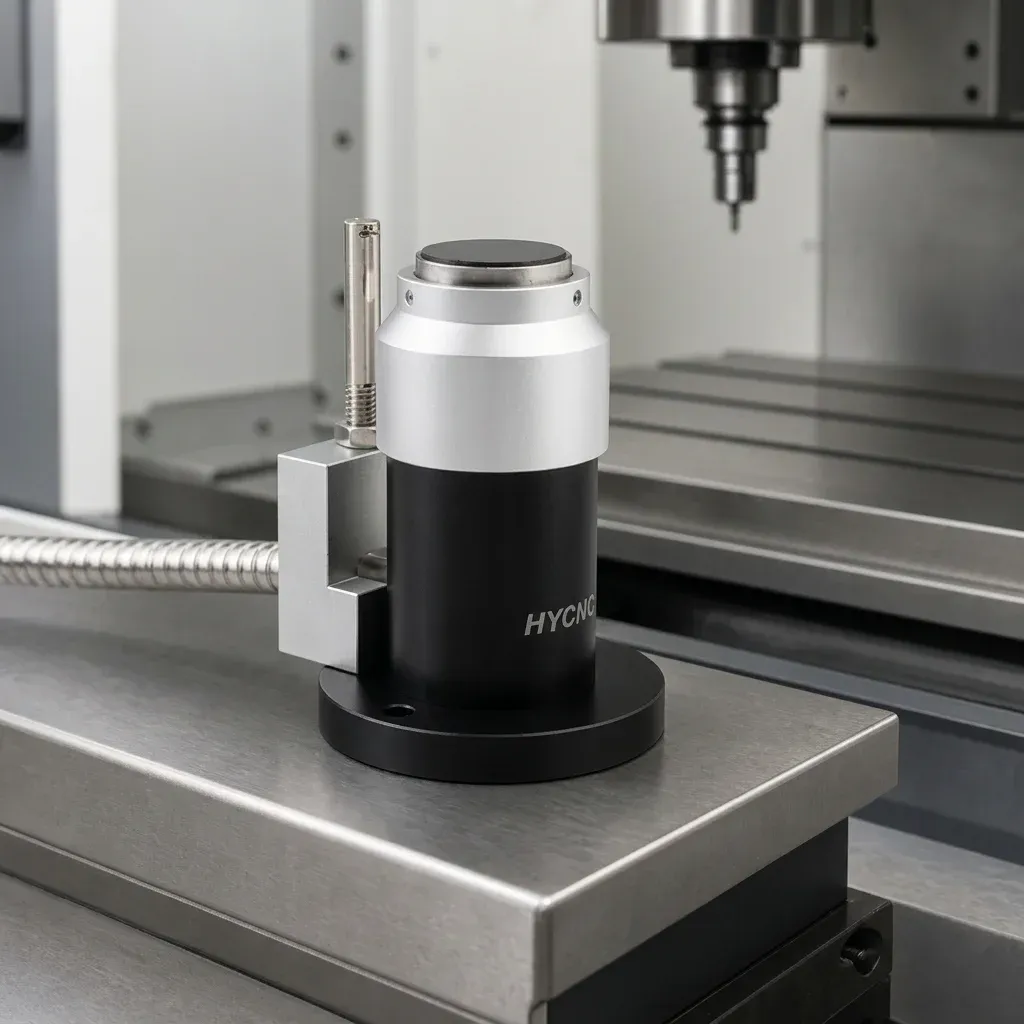

A normally closed circuit provides fail-safe operation. If a wire breaks or a connection comes loose, the machine controller immediately detects an open circuit and halts movement, preventing the spindle from plunging into the bed. Standard NO sensors cannot detect wire breaks until a crash occurs.

Under stable thermal conditions and clean surface contact, this probe consistently achieves sub-0.002mm (2 microns) repeatability. This accuracy allows seamless tool changes on high-precision CNC engraving machines and metalworking mills.

Yes! The probe operates as a simple dry contact relay switch, making it universally compatible with standard 5V, 12V, and 24V control boards including Mach3 USB/Ethernet controllers, LinuxCNC break-out boards, GRBL CNC shields, Masso, and industrial Syntec controls.

If the spindle fails to stop during initial touch due to software delay, the probe compresses further into its 5mm buffer stroke. Tracing past 1.5mm trips the dedicated over-travel microswitch, instantly firing your controller's emergency stop before the cutter can crush against the base.

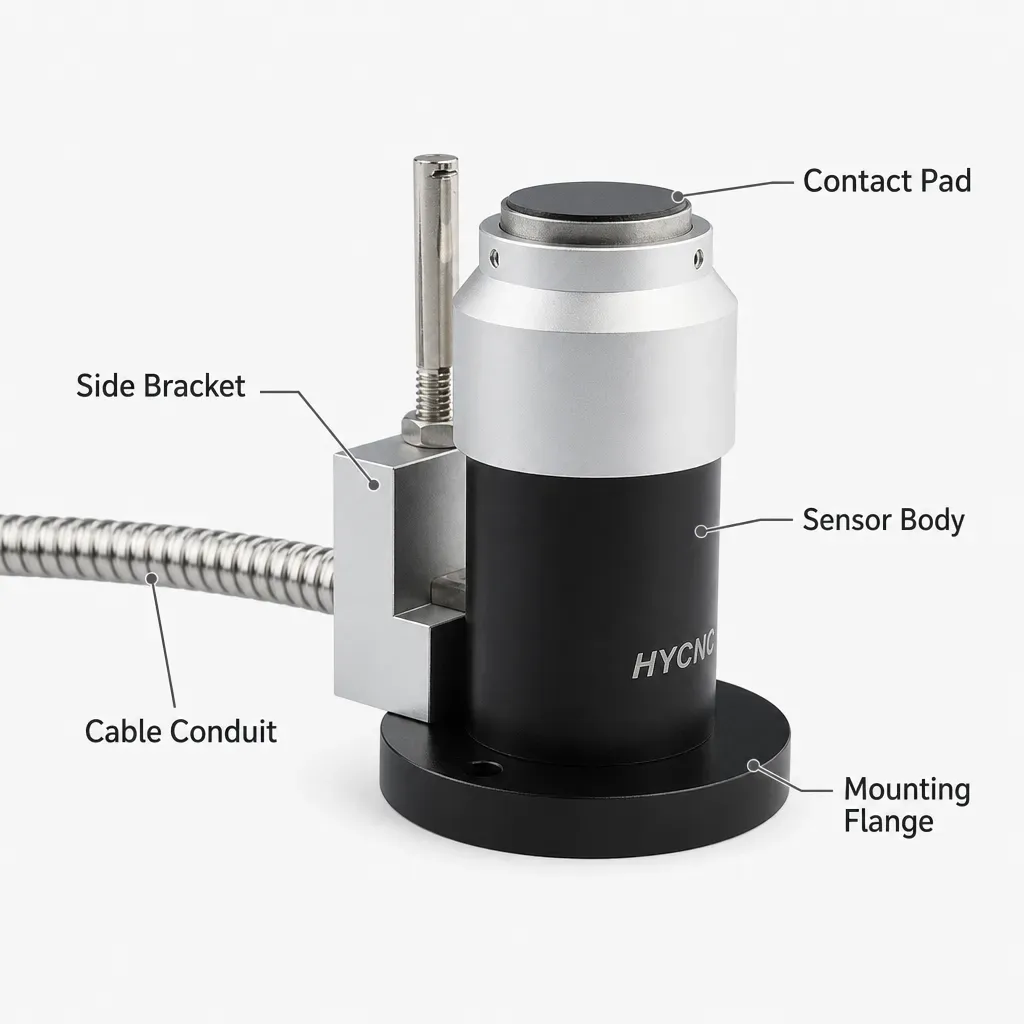

Absolutely. The sensor body is precision engineered with double nitrile O-ring seals and an IP67 rating, making it completely immune to cutting fluid immersion, soluble oil spray, and wet aluminum chips.
